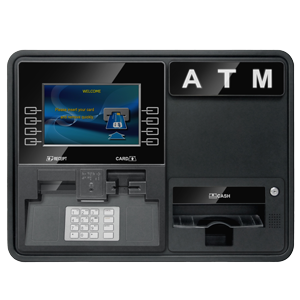

GENMEGA ONYX-W

GENMEGA ONYX-W

by Everything ATM
$2,860.00 - $2,860.00
$2,860.00
$2,860.00 - $2,860.00
$2,860.00
The Onyx-W can be installed securely as a Wall Mount or on a Counter Top. You're installation options are only limited by your imagination. Featuring a high-resolution 10.1" LCD screen and light-up touch function keys along with 2" receipt printer, the Onyx-W uses the same modules and software capabilities and functions found in existing Genmega ATMs. Dispensing is handled via a 1000-note removable cassette which is secured inside it's own internal vault system which is available with electronic locks.



Integrated Illuminated Sign
  • High Visiblility LED Sign
  • Attract Customers
LCD Screen
  • 10.1 inch wide TFT LCD Panel
  • 1280x800 Resolution
  • Customizable Ad Screens
  • 8 Lighted-Touch function keys
Printer
  • 56mm (2" standard)
PIN Entry Device
  • 16-key alphanumeric keypad
  • PCI 3.0 Certified EPP (Encrypting Pin Pad)
  • LED Illumination
Communication
  • 56Kbps dial-up modem
  • TCP/IP Ethernet connection - Onboard SSL
CPU
  • Coretex-A8 CPU (800MHz)
  • DDR2 256MB SRAM memory
  • 256MB Flash Memory
  • Windows CE 6.0
Card Reader
  • EMV (DIP Type)
ADA
  • Voice Guidance
  • Lighted Transaction Guidance
  • Accessible Keypad Layout
Security
  • Electronic Lock
  • A-series Lock
  • Cencon Lock
Cash Dispenser
  • 1000 Note Removable Cassette (WCDU)
Dimensions
  • Height = 19.7”
  • Width = 26.8”
  • Depth = 10.4”
  • Weight = 121 lbs.
Power Requirements
  • 110/220 VAC ±10%, 50/60 Hz, 145 Watts
